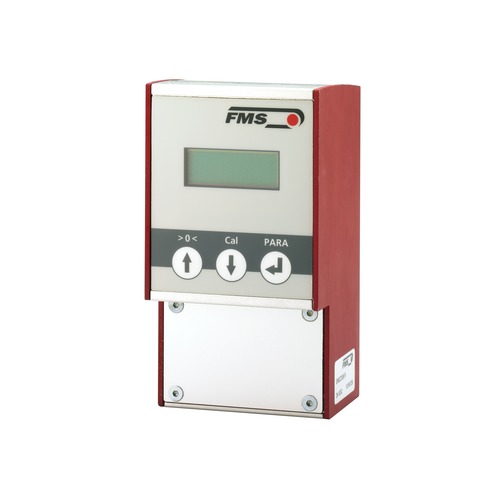

EMGZ309.R

- Digital microprocessor controlled
- 3 key operation and two-line LCD
- 3 housing /mounting types
- Plug & Play or utilize Web Browser connection
The digital tension measuring amplifiers of the EMGZ309 Series are suitable for tension measurement with all FMS force sensors. This versatile product comes as a plug & play replacement for analogue pot twisting units and is very easy to setup. More advanced users can access all the internal parameters via the 3 keys or through a Web Browser.
General technical details
Number of channels | 1 |
---|---|
Number of force sensors | 1 to 2 |
Processor cycle time | 1 ms |
Voltage output | 0 to 10 VDC, min. 1000 Ω, 12 bit |
Current output | 0/4 to 20 mA, min. 500 Ω, 12 bit |
Digital inputs | none |
Relay output | none |
Power supply | 24 VDC (18 to 36 VDC) |
Technical details
Protection class | Temperature range | Housing | CAD data |
---|---|---|---|
IP 40 | -10 to 60 °C (14 to 140 F) | DIN-rail mount | PDF DWG STP |
Your benefits
- High performance at fastest speeds
- Easy to setup and operate
- DIN Rail, wall mount (IP 65), and panel mount
- Easy to operate and provides flexible set-up
Features
- Digital microprocessor controlled
- 3 key operation and two-line LCD
- 3 housing /mounting types
- Plug & Play or utilize Web Browser connection
Industry
Converting, Wire and Cable, Metal, Paper, Textile, Aluminum, Coating, Digital printing, Labels, Yarns and Fibres, Fabrics, Grafic arts industry, Hygiene products, Laminating, Pastics, Plastic films, Food and beaverage, Non-ferous Metals, Offset printing, Narrow Web, Steel, Drying, Packaging
