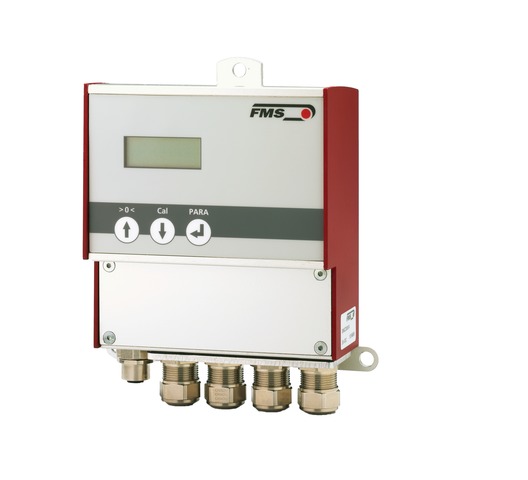

EMGZ309.W

EMGZ309.W
Features
  • Digital microprocessor controlled
  • 3 key operation and two-line LCD
  • 3 housing /mounting types
  • Plug & Play or utilize Web Browser connection

The digital tension measuring amplifiers of the EMGZ309 Series are suitable for tension measurement with all FMS force sensors. This versatile product comes as a plug & play replacement for analogue pot twisting units and is very easy to setup. More advanced users can access all the internal parameters via the 3 keys or through a Web Browser.

General technical details

Number of channels1
Number of force sensors1 to 2
Processor cycle time1 ms
Voltage output0 to 10 VDC, min. 1000 Ω, 12 bit
Current output0/4 to 20 mA, min. 500 Ω, 12 bit
Digital inputsnone
Relay outputnone
Power supply24 VDC (18 to 36 VDC)

Technical details

Protection classTemperature rangeHousingCAD data
IP 65-10 to 60 °C (14 to 140 F)wall mount
