EMGZ306

EMGZ306
Features
  • Easy to setup
  • Multiconnectable with PLC, Display etc.
  • Protected against electrical noise
  • Precise adjustment guaranteed

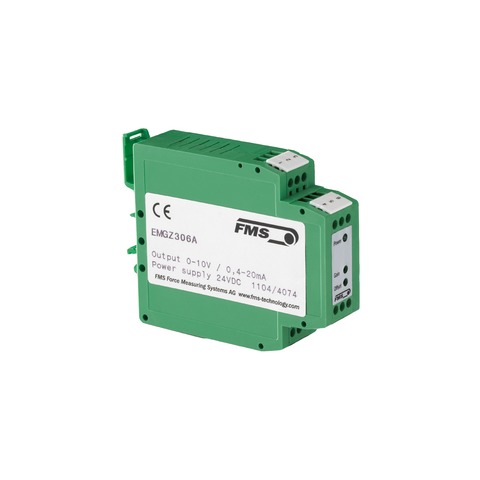

The EMGZ 306A Series is a single channel analogue tension measuring amplifier. There can be two force sensors connected. All settings are done with 20-turn trimmers which are easily accessible from the front. The amplifier outputs are standardized ± 10 V tension output and 0…20 mA or 4…20 mA current output (switchable by jumpers). For filtering of the output signals capacitors can be added. As options 10 VDC sensor supply voltage and compound-filled versions with additional vibration protection are available. The compound-filled version is used for rotating applications such as stranding machines, etc.

General technical details

Number of channels1
Number of force sensors1 to 2
Processor cycle time
Voltage output± 10 VDC, min. 1000 Ω
Current output0/4 to 20 mA, max. 500Ω
Digital inputsnone
Relay outputnone
Power supply24 VDC (18 to 36 VDC)

Technical details

Protection classTemperature rangeHousingCAD data
IP 20-10 to 60 °C (14 to 140 F)DIN-rail mount
