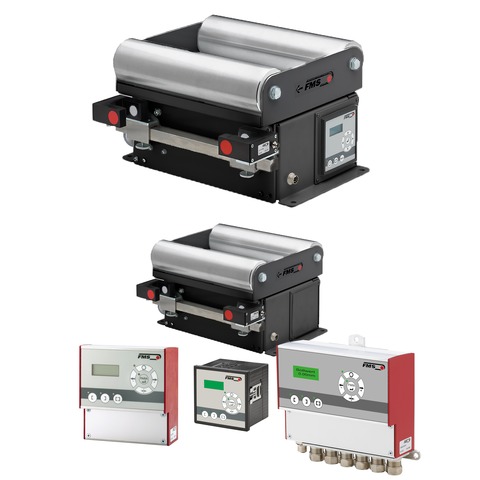

BKS020 – Compact steering frame for narrow to medium web widths

- Flexible installation options of the steering frame
- Wide range of options and accessries
The FMS web guide is mounted as close as possible to the location where the positional accuracy is required. With an FMS-webMASTER, the length of the steering frame (L) should be the same as the maximum material width (Mmax). For optimal control, the web guide sensor is mounted as close as possible to the outfeed of the steering frame. With an FMS-webDIRECTOR the guiding of the material will take place over a virtual turning point in the infeed run of the steering frame.
General technical details
Drive train | Support, guiding | Electrical connection | Adjustment speed |
---|---|---|---|
Stepper motor 24V, 2.5A with backlash-free ball screw | 3-point guide | 24 VDC power supply via terminal blocks | 35 mm/s |
Technical details
Picture | Designation | Roller length | Roller diameter | Roller surface | Frame length | Max. displacement | CAD data | Watchlist |
---|---|---|---|---|---|---|---|---|
![]() | BKS020 0250.0280.050 | 250 mm | 50 mm | D Aluminium, machined, N7, Ra 1.6 | 280 mm | ± 15 mm | PDF DWG STP | |
![]() | BKS020 0300.0290.050 | 300 mm | 50 mm | D Aluminium, machined, N7, Ra 1.6 | 290 mm | ± 25 mm | PDF DWG STP | |
![]() | BKS020 0400.0320.075 | 400 mm | 75 mm | D Aluminium, machined, N7, Ra 1.6 | 320 mm | ± 25 mm | PDF DWG STP | |
![]() | BKS020 0500.0405.075 | 500 mm | 75 mm | D Aluminium, machined, N7, Ra 1.6 | 405 mm | ± 25 mm | PDF DWG STP | |
![]() | BKS020 0600.0455.075 | 600 mm | 75 mm | D Aluminium, machined, N7, Ra 1.6 | 455 mm | ± 25 mm | PDF DWG STP | |
![]() | BKS020 0300.0290.075 | 300 mm | 75 mm | D Aluminium, machined, N7, Ra 1.6 | 290 mm | ± 25 mm | PDF DWG STP | |
![]() | BKS020 0400.0320.050 | 400 mm | 50 mm | D Aluminium, machined, N7, Ra 1.6 | 320 mm | ± 25 mm | PDF DWG STP |
Your benefits
- Wide field of applications
- Simple and quick adaption to customer requirements
Features
- Flexible installation options of the steering frame
- Wide range of options and accessries
Industry
Converting, Labels, Packaging, Narrow Web, Offset printing, Plastic films, Laminating, Grafic arts industry, Digital printing, Coating
