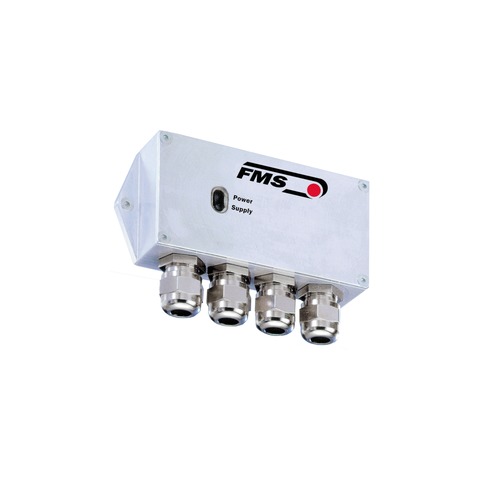

EMGZ307 – Extra Robust, analog, single-channel measuring amplifier
Features
- IP 67 aluminium housing
- Easy to setup
- Multiconnectable with PLC, display, etc.
- Durability, stability, and upgradability
The EMGZ307 Series is a single channel analogue tension measuring amplifier in a robust IP67 housing. There can be two force sensors connected. All settings are done with 20-turn trimmers. The amplifier outputs are standardized ± 10 V tension output and 0/4 to 20 mA current output (switchable by jumpers). For filtering of the output signals capacitors can be added.
General technical details
| Number of channels | 1 |
|---|---|
| Number of force sensors | 1 to 2 |
| Processor cycle time | |
| Voltage output | ± 10 VDC, min. 1000 Ω |
| Current output | 0/4 to 20 mA, max. 500Ω |
| Digital inputs | none |
| Relay output | none |
| Power supply | 24 VDC (18 to 36 VDC) |
Available variants
| Bild | Name | Sensor feedback signal | Temperature range | Housing | Protection class | CAD data | Watchlist |
|---|---|---|---|---|---|---|---|
 | EMGZ307 | ± 9 mV (max. ± 12.4 mV) | -10 to 60 °C (14 to 140 F) | wall mount | IP 67 | PDF DWG STP |
Your benefits
- Can be used in harsh enviroments
- No programming required
- Standardised analoge outputs
- Galvanically isolated
Features
- IP 67 aluminium housing
- Easy to setup
- Multiconnectable with PLC, display, etc.
- Durability, stability, and upgradability
Industry
Converting, Metal, Paper, Textile, Aluminum, Yarns and Fibres, Fabrics, Hygiene products, Food and beaverage, Non-ferous Metals, Steel, Drying, Packaging
