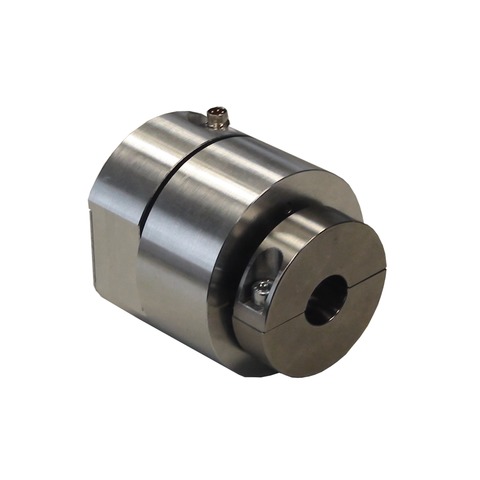

AA – Compact aluminum force sensor for use with dead shaft rolls
Features
- for installations where only limited space is availabel
- accuracy class 0.5 %
- Nominal force from 50 to 500 N (11 to 112 lbf.)
The AA-Series force measuring sensor offers compact dimensions and flexible installation options, and is designed for the measurement of tension on continuous material processing lines where dead shaft idler rolls are utilized. This feature minimizes the space required at installation. The compact dimensions and the simple installation with only one screw allow new assembly options in machines with tight installation space. Adapter diameters are available in various dimension, in metric as well as in imperial sizes.
General technical details
| Sensitivity | 1,8 mV/V |
|---|---|
| Tolerance of sensitivity | <± 2 % |
| Accuracy class | ± 0,5 % |
| Temperature coefficient | ± 0,1 %/10K |
| Temperature range | -10 to 60 °C (14 to 140 F) |
| Input resistance | 350 Ω |
| Power supply | 1 to 10 VDC |
| Overload protection rating | 10 times nominal force |
| Material main body | high-strength aluminum |
| Protection class | IP 42 |
| Electrical connection | Male connector M8, 4-pole |
| Repeatability error | 0.05% |
| Measuring range | 30:1 |
Available sizes
| Sizes | Nominal forces in N | Shaft diameter | CAD data | Watchlist |
|---|
Your benefits
- Compact design, simple installation
- Highest accuracy even at low material tension
- for small to medium material tension
