RMGZ20000 – Small force sensor for rotating applications - Phase-out 12/2018, replacement product RMGZ200A
Features
- Special design for rotating applications
- Integrated angle adjustment mechanism
- Nominal forces from 6 to 300 N
- Maintenance-free bearings

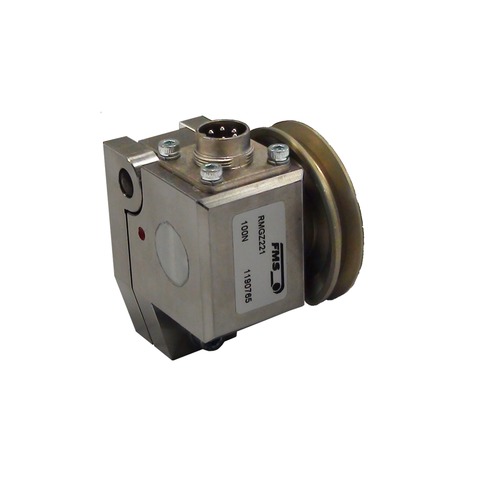

Designed to meet the requirements of smaller and higher-revolution planetary and tubular type stranders, the force sensor of the RMGZ200-Series is also applicable to bunchers and twisters. The innovative dual flexion beam construction provides the foundation for accurate and reproducible measurements in difficult operating conditions. Once the load rating and housing configuration are properly specified for the application, the sensor is easily mounted to the machine with two fasteners. A single cable (power in / signal out) is connected at the sensor housing. Standard pulleys are not supplied by FMS.
General technical details
| Sensitivity | 1,8 mV/V |
|---|---|
| Tolerance of sensitivity | <± 0,2 % |
| Accuracy class | ± 0,5 % |
| Temperature coefficient | ± 0,1 %/10K |
| Temperature range | -10 to 60 °C (14 to 140 F) |
| Input resistance | 350 Ω |
| Power supply | 1 to 10 VDC |
| Overload protection rating | 10 times nominal force |
| Material main body | Stainless steel |
| Protection class | IP 42 |
| Electrical connection | Male receptacle, flange mounting M14x1, 5-pole |
| Repeatability error | 0.05% |
| Measuring range | 30:1 |
Available sizes
| Sizes | Nominal forces in N | Inner-ø pulley | CAD data | Watchlist |
|---|
Option descriptions
| Name | Description | Picture |
|---|---|---|
| H14 | right-angle connector in scope of supply, replaces straight connector |   |
| H16 | temperature range up to 120°C (248°F) |   |
Your benefits
- Hervorragende Leistung auch bei hohen Drehzahlen und niedrigen Drahtzügen
- Keine Zentrifugalkrafteinflüsse auf Messung
- Vorgesehen für den tieferen und mittleren Anwendungsbereich
- Kein Nachschmieren nötig
Features
- Special design for rotating applications
- Integrated angle adjustment mechanism
- Nominal forces from 6 to 300 N
- Maintenance-free bearings
Industry
Wire and Cable, Yarns and Fibres
