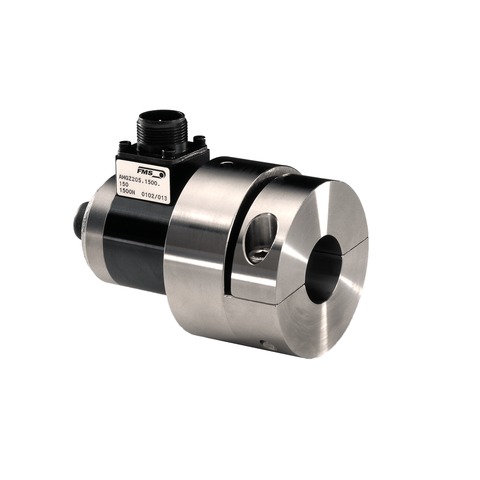

AMGZ – Robust force sensor for dead shaft applications - Phase-out 12/2018, replaced by CA-Series

AMGZ
Features
  • Messbereich 20:1
  • Nennkräfte von 100 N bis 2250 N
  • Grundkörper aus Edelstahl

Die Kraftaufnehmer der Baureihe AMGZ zeichnen sich durch ihre einfache Montage aus. Die Montage des Kraftaufnehmers erfolgt mit nur einer Befestigungsschraube an der Maschine. Der Adapter zur Aufnahme einer stehenden Welle ermöglicht den schnellen Austausch der Walzen.

General technical details

Sensitivity1,8 mV/V
Tolerance of sensitivity<± 0,2 %
Accuracy class± 0,5 %
Temperature coefficient± 0,1 %/10K
Temperature range-10 to 60 °C (14 to 140 F)
Input resistance350 Ω
Power supply1 to 10 VDC
Overload protection rating10 times nominal force
Material main bodyStainless steel
Protection classIP 42
Electrical connectionMale flange connector, Amphenol, 4-pole
Repeatability error
Measuring range20:1

Available sizes

SizesNominal forces in N Shaft diameter CAD dataWatchlist
AMGZ205

Available options

SizesOptionDescriptionCAD dataWatchlist
AMGZ205
H14
right-angle connector in scope of supply, replaces straight connector
H16
temperature range up to 120°C (248°F)
H18
with water tight, straight connector, replaces original connector
H29
resistant against aggressive media, especially acids (please specify), up to 120°C (248°F)
H31
for vacuum applications to 1E-7 hPa , 1E-5 Torr, temperature range up to 120°C (248°F)
H15
connector offset 90°, red point on connector side

Option descriptions

NameDescriptionPicture
H31for vacuum applications to 1E-7 hPa , 1E-5 Torr, temperature range up to 120°C (248°F)H31H31
H14right-angle connector in scope of supply, replaces straight connectorH14H14
H16temperature range up to 120°C (248°F)H16H16
H18with water tight, straight connector, replaces original connectorH18H18
H29resistant against aggressive media, especially acids (please specify), up to 120°C (248°F)H29H29
