Linear Actuator for Web Guide Control on Winders and Unwinders

Are you looking for a linear actuator for precise unwinding and winding of webs for a high productivity of your machine? Should it be flexible and very easy to use in its application? Then a linear actuator from FMS is the right product for you.

To the individual linear actuators.

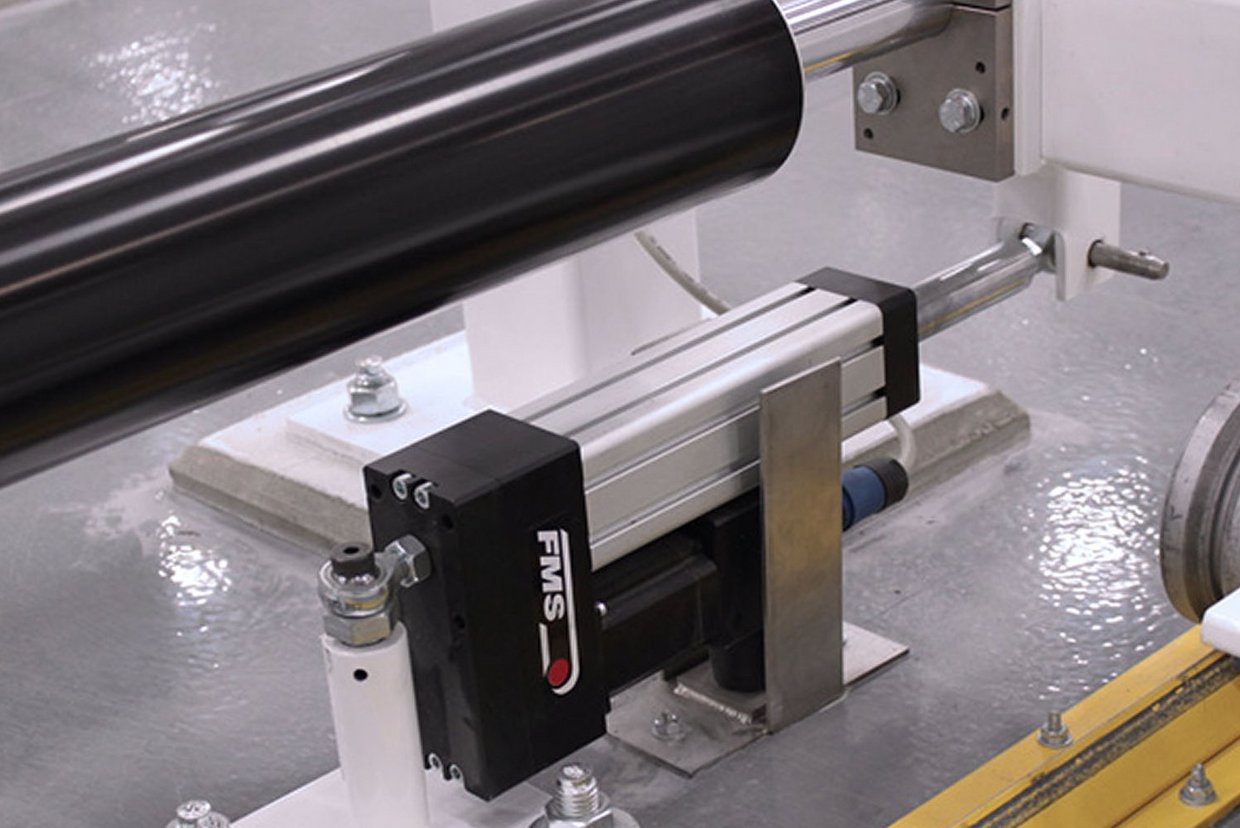

FMS Stellantrieb im Einsatz.

Your advantages

  • Ease of use
  • Reliable and robust
  • Wide correction range
  • Variable installation options

Properties

  • No parameterization required
  • Fast and precise stepper or BLDC motor
  • Many variants with different thrust forces and strokes
  • Wide range of accessories

Our promise

  1. Reliability
  2. Long service life
  3. Maintenance-free operation
  4. Lowest life cycle costs

The FMS linear actuator. Complies with hygiene regulations.

The drive equipped with a powerful stepper or BLDC motor is very flexible and easy to use. From a hygienic point of view, actuators of the FMS-winderGLIDE series are superior to hydraulic drives, especially in the field of food and medical packaging.



Three sizes for lightweight to heavy duty winders

  • BKS.D.3 with 650 N thrust
  • BKS.D.4 with 1250 N thrust
  • BKS.D.7 with 4000 N thrust
Stecker für Stellantrieb in Produktionsabteilung.

Versatile applications

  • On unwinders or rewinders
  • Push or pull installation
  • Strokes ranging from 125 to 300 mm

Function description

The linear actuators of the FMS-winderGLIDE with their backlash-free ball screw driven by high-speed stepper or BLDC motors enables precise corrections at high adjusting speeds. The linear actuator is connected to a web guiding controller using one single cable and an easily accessible connector. Due to the compact dimensions and the different mounting options, the linear actuators of the FMS-winderGLIDE series are ideally suited for retrofitting existing systems.
